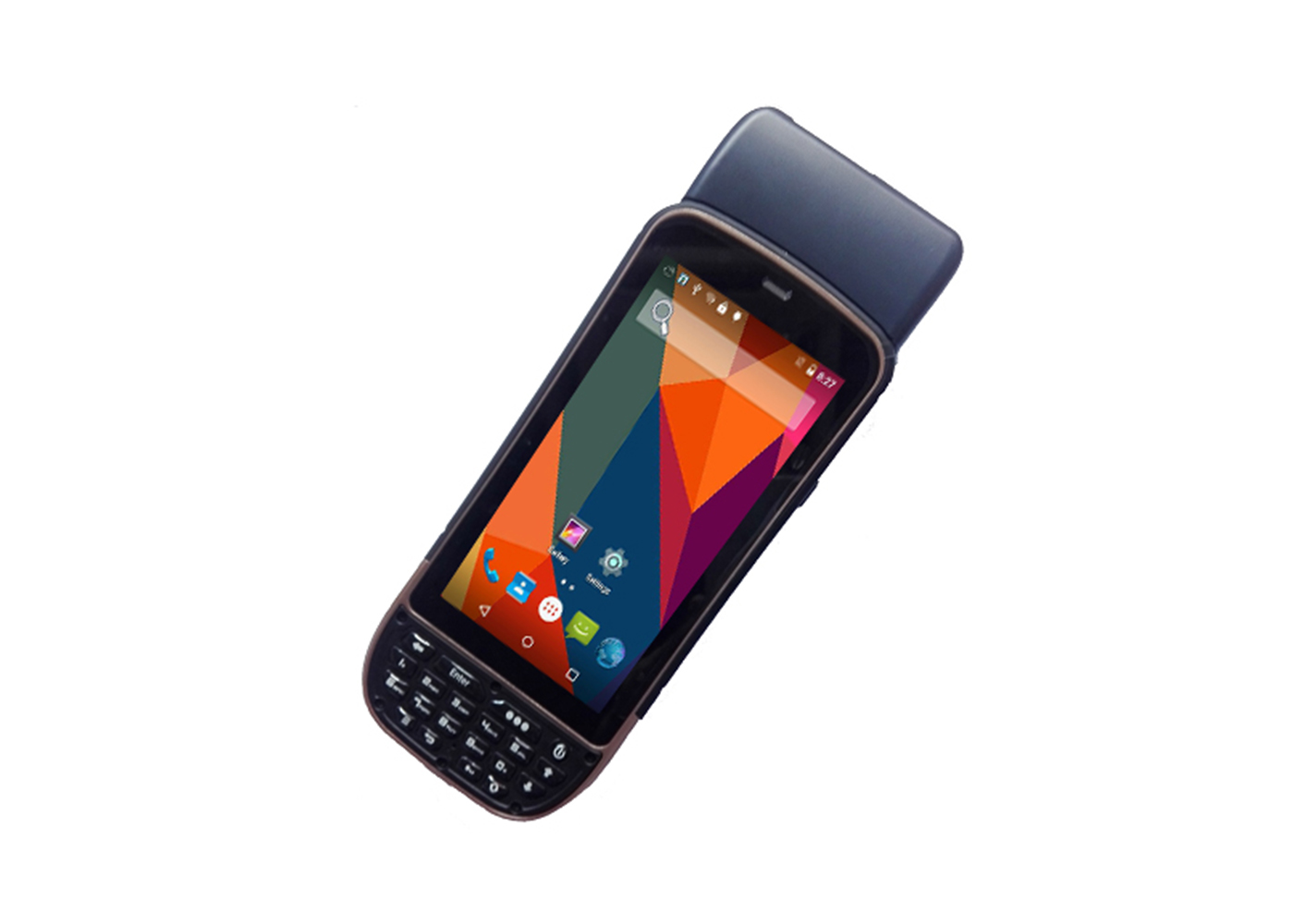

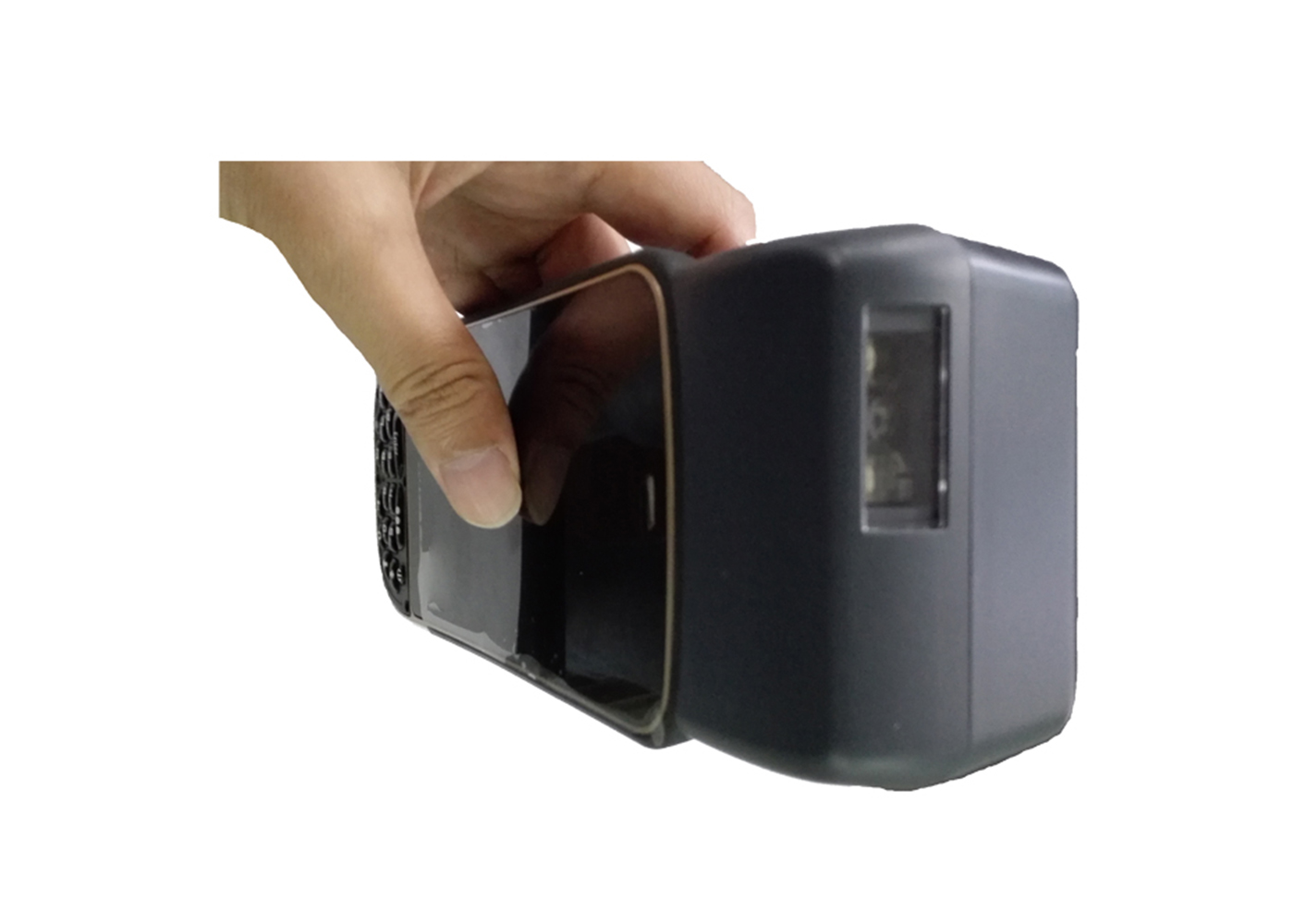

USB HOST / RS232 Multi Point Touch Portable Barcode Reader Printer

barcode scanner

option 1

 NEWLAND:EM1300(1D barcode reader)

option 2

 NEWLAND:EM3000(1D/2D barcode reader)

option 3

 symbol:SE955(1D laser barcode reader)

option 4

 HoneyWell:N4313 (1D laser barcode reader)

option 5

 Symbol: se4500(1D&2D barcode reader)

option 6

 HoneyWell: EX25 (1D &2D laser barcode reader, reading distance: 3-6m)

Core board

CPU

 Quad-core 1.3GHz
 ARM® Cortex-A53 (LPDDR2 and LPDDR3)

WWLAN

 FDD B1B3B7
 TDD B38B39B40
 WCDMA B1B2B5B8
 EVDO BC0
 GSM B2B3B5B8

Flash ROM

 16 GB

RAM

 2 GB DDR3

Display

 5.0 inch IPS 1280*720

touch screen

 Multi-point touch capacitive screen

Form Factor

 Bar type classical PDA,Industrial appearance

GPS

 Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS

 DGPS (please check options)

Bluetooth

 v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE)

dual-band WiFi

 2.4 and 5GHz 802.11 a/b/g/n

External Interface

 USB HOST/RS232(Customized)

Protection class

 IP65

Drop resistance level

 1.5m

Sensor

G-sensor

 YES

Keypad

Front

 4

Side

 4


Interface

Mini-USB connector

 USB2.0 connection

SIM card slot

 *2

TF card slot

 Yes

power jack

 Yes

Audio Jack

 Yes

Battery

Type

 rechargeable Li-ion battery 2600mAh 19.24WH

Standby Time

 500hours

Calls Time

 Up to 6hours

Charging Time

 4 hours

Speedatagroup is an OEM/ODM manufacturer of IoT (Internet of Things) Devices and a Provider of Handheld PDA terminal in hardware and software solution, focusing PDA on 1D/2D Barcode scanner, Fingerprint reader, Portable Printer, UHF RFID reader, 433M, MSR, ZigBee, PSAM, and IC card reader, MRZ, IRIS Scanner...

For the past years, Speedata has been rapidly growing as a high-tech enterprise of R&D, production and sales, and furthermore, having extensive application experiences in the IOT field. The head office is located in Beijing, with branch offices in Shanghai, Shenzhen and Dalian, as well as India.
we have a factory both in Beijing and Tianjing.
We have over 30 professional Senior engineers in R&D department.
We successfully cooperate with Foxconn in Shenzhen
