Touchscreen Biometric Fingerprint Scanner Mobile Thumb Scanner Device

Product Categories
Beijing Speedata Technology Co., Ltd
Contact Now

Touchscreen Biometric Fingerprint Scanner Mobile Thumb Scanner Device

  • 1
  • 2

Brand Name : Speedata

Model Number : TT35

Certification : ISO9001 FCC ROHS IP65 1.5M Drop assistance

Place of Origin : Mainland

MOQ : 1 set

Payment Terms : Western Union, T/T, L/C

Supply Ability : 10000 pic / month

Delivery Time : 4-10days

Packaging Details : conventional packaging-1pcs; usb data cable-1pcs; charger-1pcs; protection cover-1pcs; hand strap-1pcs

Product name : Biometric NFC Fingerprint Scanner

OS : Android Mobile6.1/6.5 or CE6.0 / Android4.0.3

CPU : T1 AM3715 1GHz

Display : 3.5''IPS 480*640

Storage : Max.32GB expansion

Wireless : Bluetooth Wifi GPRS

Interface : USB host or RS232 customized

Contact Now

Touchscreen Biometric Fingerprint Scanner Mobile Thumb Scanner Device









Parameters of TT35 Biometric Fingerprint Reader  :



Development Environment
Operating System  Windows Mobile 6.1/6.5   (Optional 1)
 Windows CE 6.0          (Optional 2)
 Android 4.0.3
SDK  Software Development Kit
Language  C#, java
Tool  Microsoft Visual Studio 2005
Fundamental  characteristics
 CPU  TI AM3715 A8 1Ghz
Memory  512MB DDR RAM + 512MB Frash ROM
Storage  Micro SD/TF card max.32GB expansion
Display  3.5-inch TFT LCD (Transflective screen VGA 640*480)
 4-wire resistive touch screen
Communications
 WWLAN

 Without modem (No 3G/GPSR Communication module)

 (Optional 1)

 Huawei MU609  Module: GSM band 850/900/1800/1900MHz,

GPRS, EDGE

UMTS 850/900/1900/ 2100MHz  HSPA )                 (Optional 2)
WiFi  JORJIN WG7310  WiFi (802.11 b/g/n)
Bluetooth  JORJIN WG7310 Bluetooth
GPS  UBLOX 6010
Physical Characteristics
Dimensions  182*82*36mm
Weight  more than 400g with battery (according config)
Expansion Slots  2*PSAM, 1*SIM
Battery  rechargeable li-ion battery 4500mAh 3.7V
 Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)
 500-hours standby time, Up to 6-hours calling time, 4-hours charging time
Camera   5MP Camera
Video  Support still image and video capture
Audio  3.5mm 4way plug
Keypad  Front 30keys, Side 4keys
Interfaces  1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack
 USB Host/RS232 interface (Customized)
User Environment
Operating Temp.  -10 to 50℃
Humidity  10%RH - 90%RH (Non-condensing)
Protection class  IP65
Drop resistance level  1.5M







Multiple modules of TT35 Biometric Fingerprint Reader  :



Barcode scanners (optional )
1D Linear Scanner (Optional)
1D scanner  Symbol SE955           (Optional 1)
 NEWLAND EM1300       (Optional 2)
 HoneyWell N4313        (Optional 3)
2D Imager Scanner (Optional)
1D/2D scanner  NEWLAND EM3000-hardware decoding       (Optional 1)
 Symbol SE4500-software decoding           (Optional 2)
RFID readers
LF RFID reader  (134.2khz, ISO11784/11785, FDX-B/HDX)      (Optional 1)
 (125KHz)                                   (Optional 2)
HF RFID reader  (13.56MHz  ISO 14443A/B    ISO 15693)
NFC reader  (include 13.56MHz  ISO 14443A ISO 15693)
UHF RFID reader

 UHF RFID 860-960MHZ  ISO18000-6C

(EPC Gen2)  /  ISO18000-6A,B compatibility

in direct mode----with AS3992 shipset      -- reading distance up to 3m
Biometric fingerprint (optional )
Fingerprint  SM-621B (optical fingerprint)                (Optional 1)
Other Modules (optional )
DGPS  Ublox LEA-6T (with RTK)
PSAM  ISO7816 (SIM card interfance)
MSR  Compatible with one, two, three track. (without PCI, EMV security certification)
IC card reader  ISO7816 ID-1
Printer  Integrate 2inch Direct thermal line printing
Far Infrared Meter Reading  IEC62056-21 (IEC1107) communication protocol
433Mhz  Require customers to provide 433Mhz wireless modules or specifications
Zigbee  Require customers to provide 433Mhz wireless modules or specifications




Touchscreen Biometric Fingerprint Scanner Mobile Thumb Scanner Device

1. Samples

  • Less than 10pcs samples are applied each time for our clients, the price is obviously a little bit higher than the wholesale price.
  • But If you want more than 100pcs, it'll be much more cheap.However,the more you order,the lower production cost it'll be, so the cheaper price you'll get.

All the price is excluding the freight fee.

2. Quality

  • Color issues: All the PDA products are 100% absolutely objects photographed,but because of the Camera-technology, Light,Pixels and other factors, there'll be a little bit difference with the real product. Please take the real goods for reference or make sure with our sales in advance.
  • Qualifications: Our PDAs are produced according to the ISO9001 quality management system, and all the products have passed throughIP65,CCC,and ROHS.
  • Packages: We offer 2 different kind of packaging. one is for KT40 with brand carton, and another is ordinary carton, in which there are special packaging materials of cardboard EPE and stereotypes cotton to reinforce and protect PDAs.

3. Delivery

  • If you want PDAs like KT40 which are always in stock,it may needs 3-5 days to delivery.we have KT40 in stock because it's a conventional product only with 2 modulars of 1d/2d barcode scanner and NFC reader.
  • If you want OEM/ODM products with particular functions, it may needs 5 days more to produce and delivery.

More specific details. please contact our sales.

4. Transportation

  • We always choose the competitive and safe shipping agent like DHL,UPS and Fedex and any other designated shipping agent by the customers.
  • If it goes smoothly with the customs  clearance, you'll get the goods in 3-7 days.

5. After-Sale Service

  • We support 13 months warranty,during this period,it's exactly FREE to replace you a quiet new device terminal if your machines have serious irreversible functional damage.
  • Freight fare is half paid of the round trip by both sides. Customer pay the freight fee when they are sending the machines to china,and we'll pay it when returning them back to the clients.

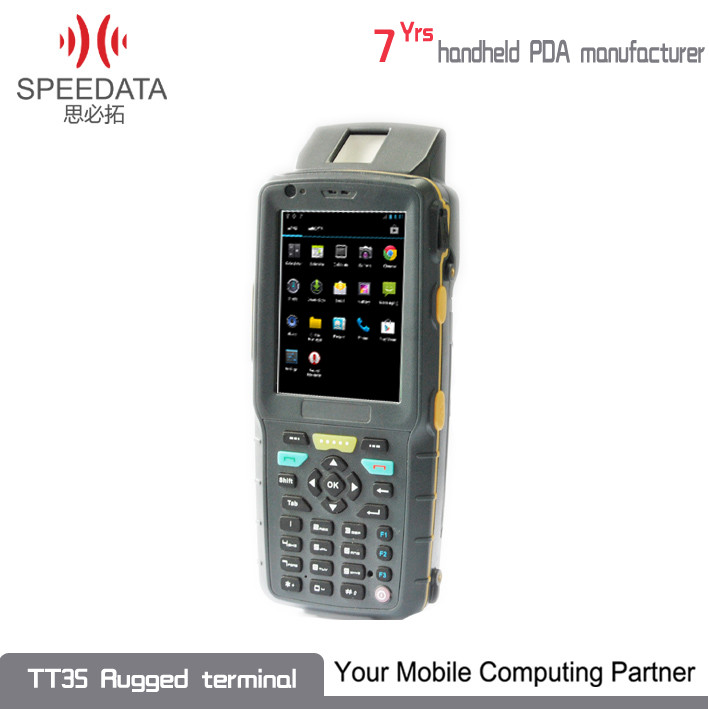

Pictures of TT35 Biometric Fingerprint Reader  :

Touchscreen Biometric Fingerprint Scanner Mobile Thumb Scanner Device

Touchscreen Biometric Fingerprint Scanner Mobile Thumb Scanner DeviceTouchscreen Biometric Fingerprint Scanner Mobile Thumb Scanner DeviceTouchscreen Biometric Fingerprint Scanner Mobile Thumb Scanner Device





Price of Biometric NFC Fingerprint Scanner with 2D Barcode Scanner with Touch Screen

Price of Biometric NFC Fingerprint Scanner with 2D Barcode Scanner with Touch Screen
